容器化部署 FunASR

此镜像提供了标准化的 API 接口，让您能够便捷地通过 API 调用方式 访问和使用所有功能。

本指南详细阐述了在共绩算力平台上，高效部署与使用 FunASR API 项目的技术方案。FunASR 是一个基本的语音识别工具包，提供多种功能，包括语音识别（ASR）、语音活动检测（VAD）、标点符号恢复、语言模型、说话人验证、说话人分类和多说话者 ASR。

1. 服务简介与应用场景

FunASR 是阿里巴巴开源的语音识别工具包，支持多场景一键部署，适合会议转写、客服质检、字幕生成、语音助手、医疗法律文档整理、多语言识别等实际业务需求。

1.1 典型应用场景

会议/讲座/采访转写：实时或离线将录音转为带时间戳文本，便于归档检索。
智能客服与语音质检：实时识别对话内容，支持热词、敏感词检测、服务分析。
媒体内容字幕生成：批量处理音视频，自动生成带时间轴字幕文本。
语音助手与人机交互：低延迟识别，适合智能音箱、车载、移动端。
医疗、法律文档整理：支持专业热词，提升术语识别准确率。
多语言识别与翻译前处理：支持多语种、口音，适合国际会议、跨国企业。

2. 部署与接入

2.1 共绩算力平台部署步骤

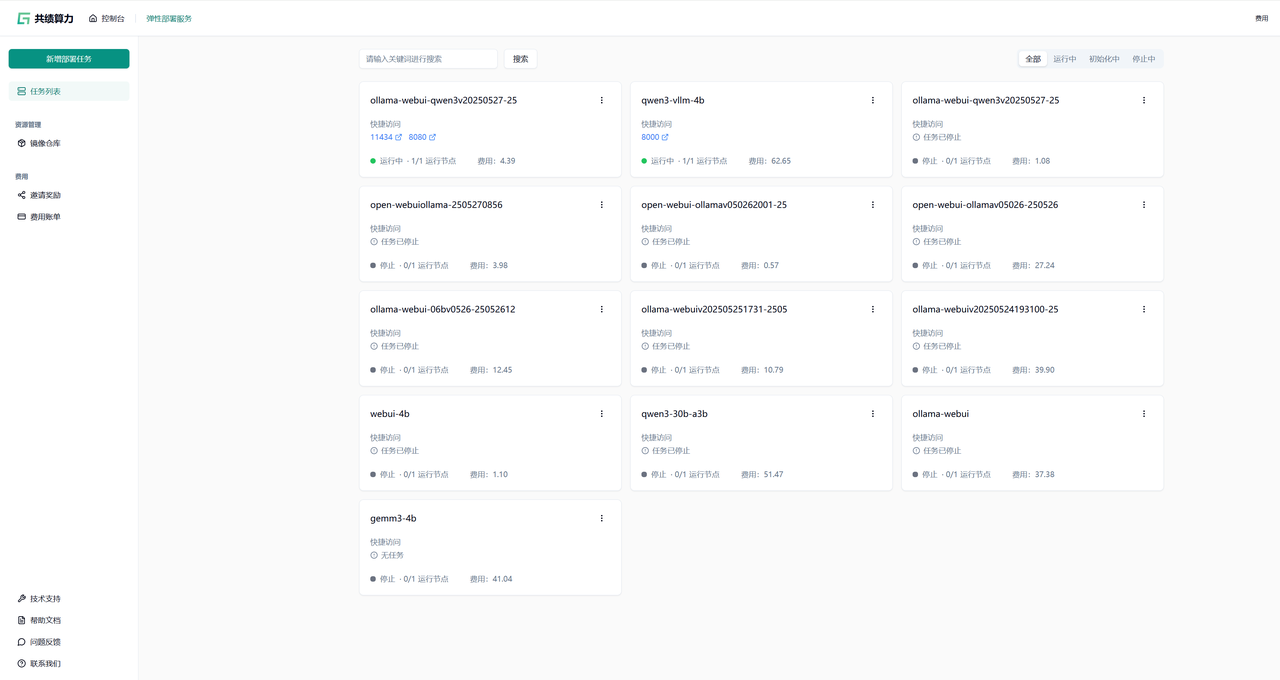

1.登录共绩算力控制台，在首页点击“弹性部署服务”。

2.1 共绩算力平台部署步骤示意图

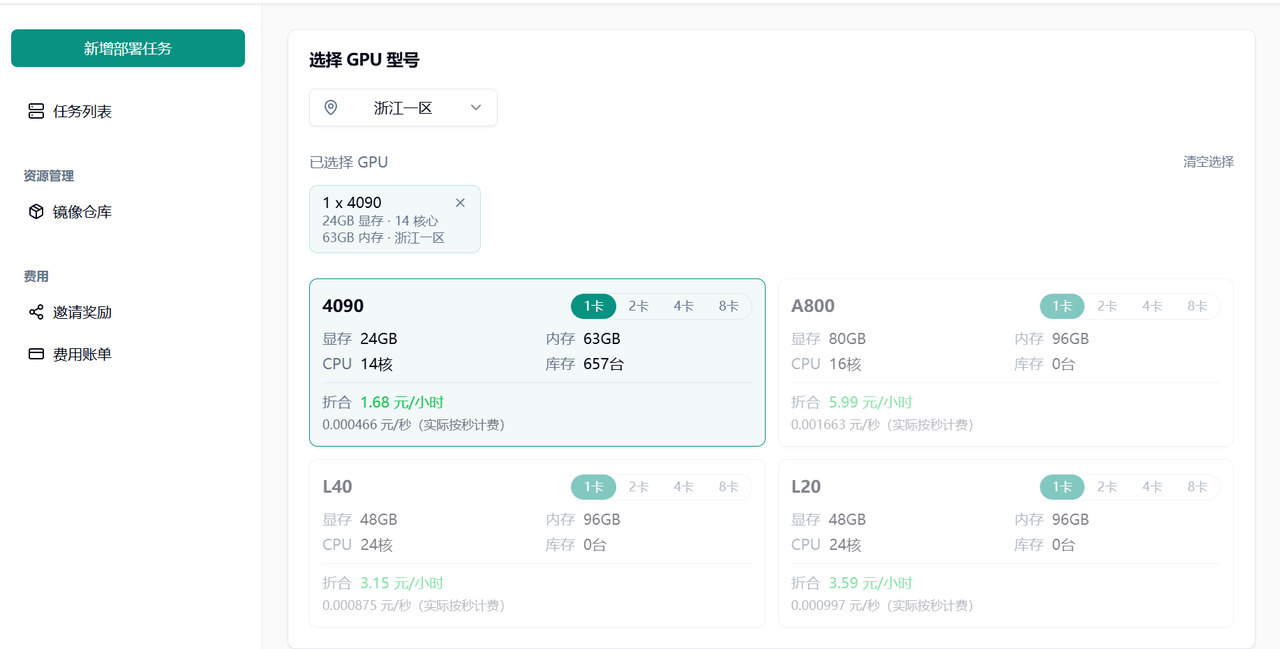

2.选择 GPU 型号（推荐 1 卡 4090）。

2.1 共绩算力平台部署步骤示意图

3.在“服务配置”选择 FunASR API 官方镜像。

4.点击“部署服务”，平台自动拉取镜像并启动容器。

2.1 共绩算力平台部署步骤示意图

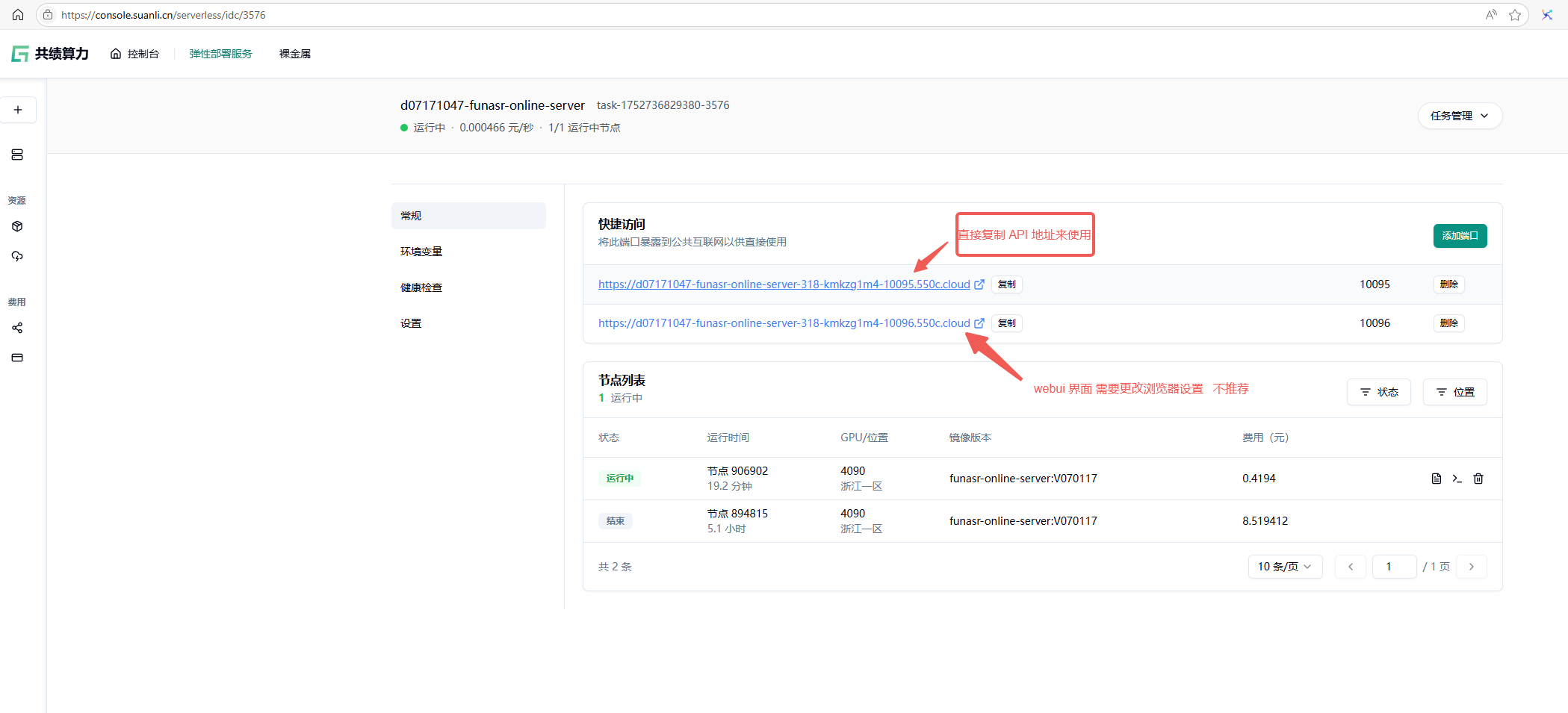

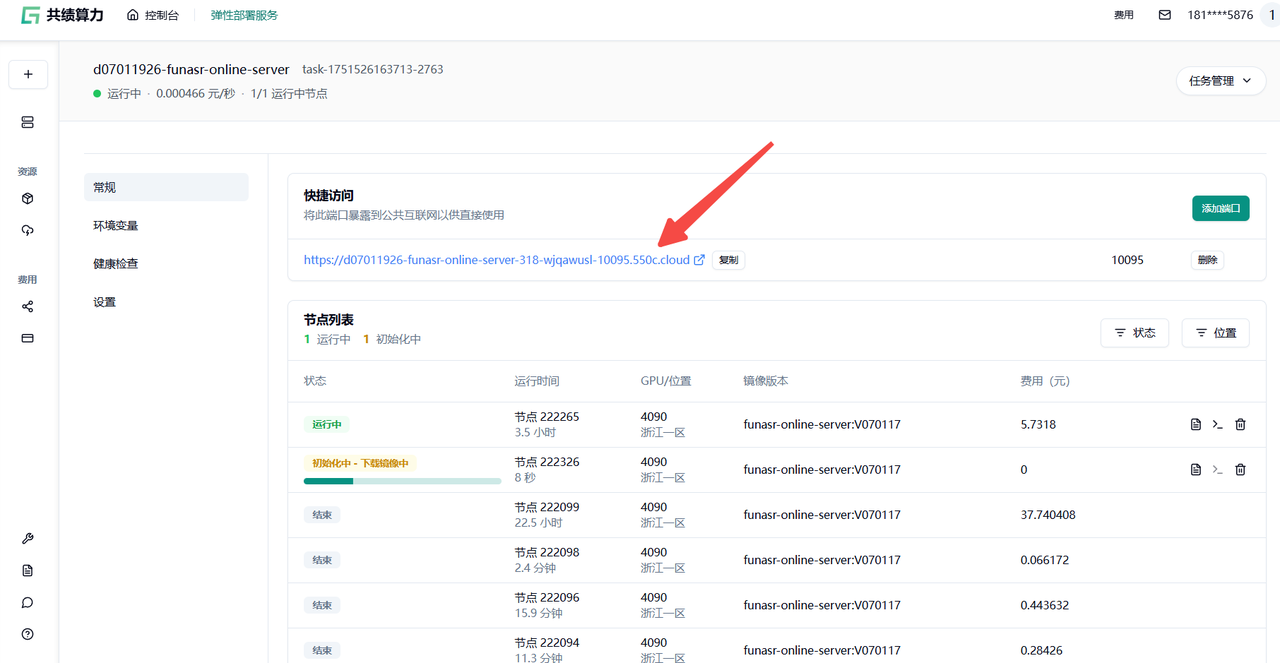

5.部署完成后，在“快捷访问”中复制端口为 10095 的公网访问链接，即为 API 服务地址。

点击 10095 的端口会进入不到具体页面，这个是正常现象，直接复制地址到您的对应服务中使用 API 服务即可，可以参考下面的示例程序。

2.1 共绩算力平台部署步骤示意图

3. API 协议与参数

3.1 通信协议

WebSocket 协议，服务地址：wss://d07171047-funasr-online-server-318-kmkzg1m4-10095.550c.cloud

3.2 典型调用流程

连接 WebSocket 服务。
发送配置参数（JSON）。
分块发送音频数据（bytes）。
发送结束标志（{"is_speaking": false}）。
接收识别结果（JSON）。

3.3 配置参数说明


参数	类型	说明
chunk_size	array	流式模型延迟配置，数组格式，如 [5,10,5]
wav_name	string	音频文件名
is_speaking	boolean	说话状态/断句尾点标识 `true`表示正在说话，`false`表示语句结束
wav_format	string	音频格式，支持 pcm
chunk_interval	number	块间隔时间（单位毫秒）
itn	boolean	是否逆文本标准化`true`开启（如将“一二三”转为“123”）
mode	string	识别模式：`2pass`（双通混合模式）、`online`（纯流式）、`offline`（非流式）
hotwords	string	热词配置，JSON 字符串如：`{"科技词":0.8,"人名":1.2}`）

4. 典型场景与实测程序

4.1 中文音频识别实测示例（test_cn_male_9s.pcm）

test_cn_male_9s.wav

import asyncio
import websockets
import json

ws_url = "wss://d07171047-funasr-online-server-318-kmkzg1m4-10095.550c.cloud"
async def test_asr(audio_file, wav_name):
    config = {
        "chunk_size": [5, 10, 5],
        "wav_name": wav_name,
        "is_speaking": True,
        "wav_format": "pcm",
        "chunk_interval": 10,
        "itn": True,
        "mode": "2pass"
    }
    async with websockets.connect(ws_url) as ws:
        await ws.send(json.dumps(config, ensure_ascii=False))
        with open(audio_file, "rb") as f:
            while True:
                chunk = f.read(8000)
                if not chunk:
                    break
                await ws.send(chunk)
        await ws.send(json.dumps({"is_speaking": False}))
        while True:
            try:
                resp = await asyncio.wait_for(ws.recv(), timeout=5)
                print(f"{audio_file} 识别结果：", resp)
                if 'is_final' in resp and json.loads(resp).get('is_final'):
                    break
            except asyncio.TimeoutError:
                break

if __name__ == "__main__":
    asyncio.run(test_asr("test_cn_male_9s.pcm", "test_cn_male_9s"))

实际输出：

test_cn_male_9s.pcm 识别结果： {"is_final":true,"mode":"2pass-offline","stamp_sents":[...],"text":"这是一期非广告视频，给你们介绍一下我养猫。这 3 年用到 过最好用的几样养猫物品。","timestamp":"[[50,150],[150,250],...]

主要内容：

这是一期非广告视频，给你们介绍一下我养猫。这 3 年用到过最好用的几样养猫物品。

4.2 英文音频识别实测示例（test_en_steve_jobs_10s.pcm）

test_en_steve_jobs_10s.wav

import asyncio
import websockets
import json

ws_url = "wss://d07171047-funasr-online-server-318-kmkzg1m4-10095.550c.cloud"
async def test_asr(audio_file, wav_name):
    config = {
        "chunk_size": [5, 10, 5],
        "wav_name": wav_name,
        "is_speaking": True,
        "wav_format": "pcm",
        "chunk_interval": 10,
        "itn": True,
        "mode": "2pass"
    }
    async with websockets.connect(ws_url) as ws:
        await ws.send(json.dumps(config, ensure_ascii=False))
        with open(audio_file, "rb") as f:
            while True:
                chunk = f.read(8000)
                if not chunk:
                    break
                await ws.send(chunk)
        await ws.send(json.dumps({"is_speaking": False}))
        while True:
            try:
                resp = await asyncio.wait_for(ws.recv(), timeout=5)
                print(f"{audio_file} 识别结果：", resp)
                if 'is_final' in resp and json.loads(resp).get('is_final'):
                    break
            except asyncio.TimeoutError:
                break

if __name__ == "__main__":
    asyncio.run(test_asr("test_en_steve_jobs_10s.pcm", "test_en_steve_jobs_10s"))

实际输出：

test_en_steve_jobs_10s.pcm 识别结果： {"is_final":true,"mode":"2pass-offline","stamp_sents":[...],"text":" thank you， designed the first time time， pure and and designed all in the land。 it was the first cure you，you。","timestamp":"[[270,450],[450,750],...]

主要内容：

thank you, designed the first time time, pure and and designed all in the land. it was the first cure you, you.

4.3 会议/讲座/采访转写（带时间戳）

import asyncio
import websockets
import json

ws_url = "wss://console.suanli.cn/serverless/idc/3576"
async def meeting_transcribe():
    config = {
        "chunk_size": [5, 10, 5],
        "wav_name": "meeting_demo",
        "is_speaking": True,
        "wav_format": "pcm",
        "chunk_interval": 10,
        "itn": True,
        "mode": "2pass"
    }
    audio_file = "meeting_8k.pcm"  # 8kHz 单声道 PCM
    async with websockets.connect(ws_url) as ws:
        await ws.send(json.dumps(config, ensure_ascii=False))
        with open(audio_file, "rb") as f:
            while True:
                chunk = f.read(8000)
                if not chunk:
                    break
                await ws.send(chunk)
        await ws.send(json.dumps({"is_speaking": False}))
        while True:
            try:
                resp = await asyncio.wait_for(ws.recv(), timeout=5)
                print("识别结果：", resp)
                # 示例输出：{"is_final":true,"text":"欢迎参加会议...","timestamp":"[[0,800],[800,1600],...]"}
                if 'is_final' in resp and json.loads(resp).get('is_final'):
                    break
            except asyncio.TimeoutError:
                break

asyncio.run(meeting_transcribe())

4.4 智能客服与语音质检（热词增强）

import asyncio
import websockets
import json

ws_url = "wss://console.suanli.cn/serverless/idc/3576"
async def customer_service_asr():
    hotwords = {"产品 A": 30, "专有名词": 25, "投诉": 20}
    config = {
        "chunk_size": [5, 10, 5],
        "wav_name": "service_demo",
        "is_speaking": True,
        "wav_format": "pcm",
        "chunk_interval": 10,
        "itn": True,
        "mode": "online",
        "hotwords": json.dumps(hotwords, ensure_ascii=False)
    }
    audio_file = "service_call_8k.pcm"
    async with websockets.connect(ws_url) as ws:
        await ws.send(json.dumps(config, ensure_ascii=False))
        with open(audio_file, "rb") as f:
            while True:
                chunk = f.read(8000)
                if not chunk:
                    break
                await ws.send(chunk)
        await ws.send(json.dumps({"is_speaking": False}))
        while True:
            try:
                resp = await asyncio.wait_for(ws.recv(), timeout=5)
                print("客服识别：", resp)
                # 示例输出：{"is_final":true,"text":"您好，欢迎致电产品 A 客服..."}
                if 'is_final' in resp and json.loads(resp).get('is_final'):
                    break
            except asyncio.TimeoutError:
                break

asyncio.run(customer_service_asr())

4.5 媒体内容字幕生成（带时间轴）

import asyncio
import websockets
import json

ws_url = "wss://console.suanli.cn/serverless/idc/3576"
async def subtitle_generation():
    config = {
        "chunk_size": [8, 15, 8],
        "wav_name": "media_demo",
        "is_speaking": True,
        "wav_format": "pcm",
        "chunk_interval": 10,
        "itn": True,
        "mode": "offline"
    }
    audio_file = "media_8k.pcm"
    async with websockets.connect(ws_url) as ws:
        await ws.send(json.dumps(config, ensure_ascii=False))
        with open(audio_file, "rb") as f:
            while True:
                chunk = f.read(8000)
                if not chunk:
                    break
                await ws.send(chunk)
        await ws.send(json.dumps({"is_speaking": False}))
        while True:
            try:
                resp = await asyncio.wait_for(ws.recv(), timeout=5)
                print("字幕识别：", resp)
                # 示例输出：{"is_final":true,"text":"...","timestamp":"[[0,800],[800,1600],...]"}
                if 'is_final' in resp and json.loads(resp).get('is_final'):
                    break
            except asyncio.TimeoutError:
                break

asyncio.run(subtitle_generation())

4.6 语音助手与人机交互（低延迟实时识别）

import asyncio
import websockets
import json

ws_url = "wss://console.suanli.cn/serverless/idc/3576"
async def voice_assistant():
    config = {
        "chunk_size": [3, 6, 3],
        "wav_name": "assistant_demo",
        "is_speaking": True,
        "wav_format": "pcm",
        "chunk_interval": 5,
        "itn": True,
        "mode": "online"
    }
    audio_file = "assistant_8k.pcm"
    async with websockets.connect(ws_url) as ws:
        await ws.send(json.dumps(config, ensure_ascii=False))
        with open(audio_file, "rb") as f:
            while True:
                chunk = f.read(4000)
                if not chunk:
                    break
                await ws.send(chunk)
        await ws.send(json.dumps({"is_speaking": False}))
        while True:
            try:
                resp = await asyncio.wait_for(ws.recv(), timeout=5)
                print("助手识别：", resp)
                # 示例输出：{"is_final":true,"text":"打开空调"}
                if 'is_final' in resp and json.loads(resp).get('is_final'):
                    break
            except asyncio.TimeoutError:
                break

asyncio.run(voice_assistant())

4.7 医疗/法律文档整理（专业热词）

import asyncio
import websockets
import json

ws_url = "wss://console.suanli.cn/serverless/idc/3576"
async def medical_legal_asr():
    hotwords = {"高血压": 30, "肝功能": 25, "原告": 20, "被告": 20}
    config = {
        "chunk_size": [5, 10, 5],
        "wav_name": "medlaw_demo",
        "is_speaking": True,
        "wav_format": "pcm",
        "chunk_interval": 10,
        "itn": True,
        "mode": "offline",
        "hotwords": json.dumps(hotwords, ensure_ascii=False)
    }
    audio_file = "medlaw_8k.pcm"
    async with websockets.connect(ws_url) as ws:
        await ws.send(json.dumps(config, ensure_ascii=False))
        with open(audio_file, "rb") as f:
            while True:
                chunk = f.read(8000)
                if not chunk:
                    break
                await ws.send(chunk)
        await ws.send(json.dumps({"is_speaking": False}))
        while True:
            try:
                resp = await asyncio.wait_for(ws.recv(), timeout=5)
                print("专业识别：", resp)
                # 示例输出：{"is_final":true,"text":"患者高血压... 原告陈述..."}
                if 'is_final' in resp and json.loads(resp).get('is_final'):
                    break
            except asyncio.TimeoutError:
                break

asyncio.run(medical_legal_asr())

4.8 多语言识别与翻译前处理

import asyncio
import websockets
import json

ws_url = "wss://console.suanli.cn/serverless/idc/3576"
async def multilingual_asr():
    config = {
        "chunk_size": [5, 10, 5],
        "wav_name": "multi_demo",
        "is_speaking": True,
        "wav_format": "pcm",
        "chunk_interval": 10,
        "itn": True,
        "mode": "2pass"
    }
    audio_file = "multilang_8k.pcm"
    async with websockets.connect(ws_url) as ws:
        await ws.send(json.dumps(config, ensure_ascii=False))
        with open(audio_file, "rb") as f:
            while True:
                chunk = f.read(8000)
                if not chunk:
                    break
                await ws.send(chunk)
        await ws.send(json.dumps({"is_speaking": False}))
        while True:
            try:
                resp = await asyncio.wait_for(ws.recv(), timeout=5)
                print("多语言识别：", resp)
                # 示例输出：{"is_final":true,"text":"Welcome to the conference..."}
                if 'is_final' in resp and json.loads(resp).get('is_final'):
                    break
            except asyncio.TimeoutError:
                break

asyncio.run(multilingual_asr())

5. 常见问题与参考资料

音频需为 8kHz 单声道 PCM，建议用 ffmpeg 或 sox 转换

详细参数与高级用法见 FunASR 官方文档

GitHub：https://github.com/alibaba/FunASR

共绩算力 Open API 使用文档：Open API 使用文档
